An Engine for Nanochemistry
Author(s): <p>Afonin SM</p>
Abstract
The structural model of an engine for nanochemistry is obtained. The structural scheme of an engine is constructed. For the control systems in nanochemistry with an elecro elastic engine its characteristics are determined.
Introduction
An engine with piezoelectric or electrostrictive effect is used in
precision control system for nanochemistry [1-6]. In structural
schema of electro elastic engine its energy transformation is clearly
[7-12]. The piezo engine is applied for precise adjustment for
nanochemistry in adaptive optics and scanning microscopy [3-20].
Characteristics of an Engine

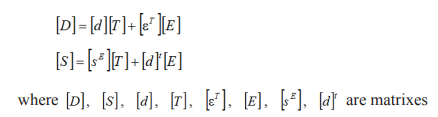

For an engine its equations in matrixes [8, 11-38] for nanochemistry
have the form
electric induction, relative displacement, piezo coefficient, strength
mechanical field, dielectric constant, strength electric field, elastic
compliance, transposed piezo coefficient.

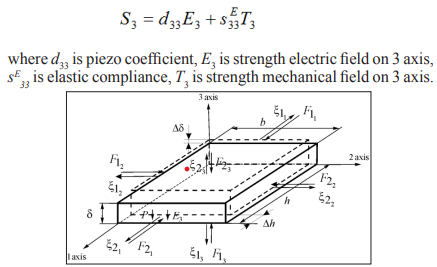

For piezo engine Figure 1 its relative displacement for 3 axis [8,
11-20] has the form
Figure 1: Piezo engine for nanochemistry

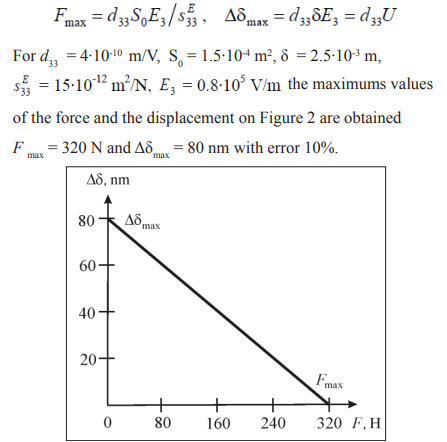

On the mechanical characteristic of longitudinal piezo engine its
maximums values the force and the displacement are obtained
in the form
Figure 2: Mechanical characteristic of longitudinal piezo engine
for nanochemistry
The differential equation of an electro elastic engine for
nanochemistry has the form [11-45]
here ?(x,s) is the Laplace transform displacement, s is the
parameter, x is the coordinate. The decision this differential
equation is determined in the form
Using the expressions
where l is length.
We have the coefficients A and B in the form
The solution equation has form

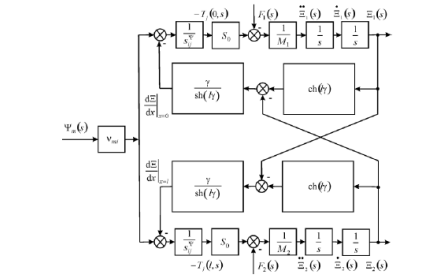

Figure 3: Structural scheme of an engine for nanochemistry
This structural scheme is used for calculation the deformations of
the electro elastic engine in nanochemistry. From the structural
model the matrix equation has the form
The steady-state movements of the faces 1 and 2 have the
form

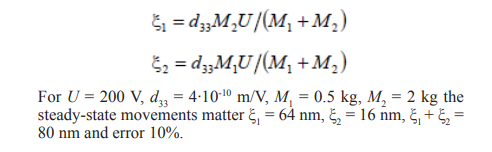

The steady-state movements of the longitudinal piezo engine
have the form

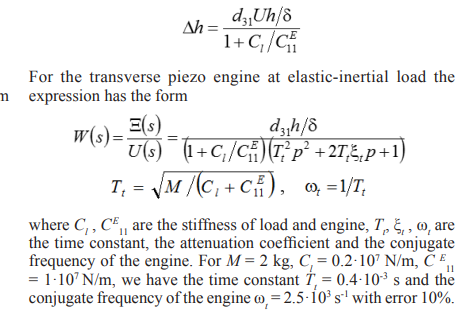

The steady-state movement of the transverse piezo engine with
fixed one face and at elastic-inertial load has the form
Conclusions
For an engine its structural model for nanochemistry is
determined. The structural scheme of an engine is constructed.
The characteristics of an engine are obtained.
