Introduction

Industry 4.0 has proliferated the use of connected small Internet of Things (IoT) and Cyber-Physical Systems (CPS) in applications ranging from home security systems, smart controllers, actuators, sensor nodes, activity trackers, and alarm systems [1]. Often these devices are used for security- critical user data and information transfers. A majority of them are resource-constrained, with no onboard security support, which makes them vulnerable to code modification attacks [2,3]. For example, the Electric Control Unit (ECU) of car measures various sensors (e.g., humidity, speed, temperature, speed) and performs different actuation tasks such as speed or heat controls. If an attacker modifies the temperature sensor code to give a low reading, it can overheat the car or damage other parts. Here are few more examples of such attacks [4-6].

The resilience of a system is defined as its ability to detect (including boot-time and continuous runtime) the presence of attacks, prevent adversarial effects and keep the device operational (including in degraded mode) before it can reach a fail-safe or recovery state. Fig 1 shows the resilient system operational timeline. The phases P1 and P5 depict the normal mode of operation. Phase P2 covers attack occurrence andruntime detection. The phases-3 and 4 (P3 & P4) represent the prevention and recovery operations.

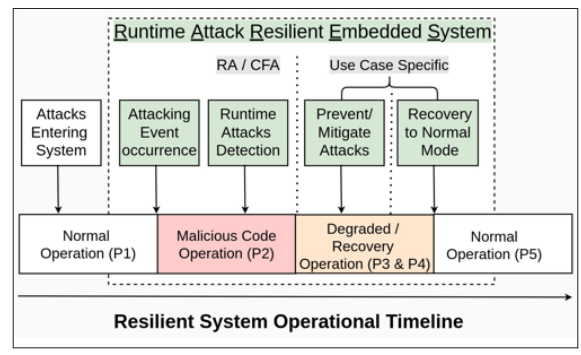

Figure 1: Depicts the resilient system operation flow timeline

From Figure 1, the resilient system requires a secure-boot like boot-time software integrity validation technique before the device enters in phase P1 [7-10]. Recent implementa- tions of APEX [11] presents lightweight continuous runtime attacks detection, prevention and verified proof of execution techniques (covering phase 2 and 3 from Fig 1). However, it resets the systems abruptly for attack prevention. Considering the wide applications spectrum of these devices (e.g., aircraft controllers, automotive Electronic Control Unit (ECU)), an abrupt system reset can result in adverse effects. These devices requires to operate (including degraded mode) until they can fail-safe or recover completely. Furthermore, they requires use- case-specific prevention and recovery techniques.

To this end, this paper presents RARES: a novel lightweight Runtime Attack Resilient Embedded System design using verified proof of execution.

Research Contributions: The design and implementation of RARES presents the following research contributions:

• Runtime Attacks Classification & Detection: It clas- sifies runtime memory modification attacks into three categories and presents a novel lightweight 16 bit control register (Ctrl_ register) based detection technique.
• Prevention Technique: It demonstrates novel use-case- specific re-configurable runtime attacks prevention tech- It gives the control in the hands of system devel- opers to design use-case-specific prevention and recovery techniques on FPGA.

Related Work

As shown in Figure 1, the resilient system design involves various phases of detection, prevention, and recovery. Un- fortunately, RARES was unable to find a single state-of- art implementation supporting all of these. Therefore, we have studied and analyzed the state-of-the-art works in three main categories: 1) detection, 2) prevention, and 3) recovery techniques.

Detection Techniques: Remote Attestation (RA) is widely used client-server based security primitive that per- forms integrity verification of software state of the un-trusted prover device upon request from third party trusted verifier. Previous implementations of hardware-based, software-based and hybrid RAs can detect runtime memory modification attacks periodically. Control Flow Attestation (CFA) and Data Flow Attestation (DFA) techniques are used for continuous runtime attacks detection [12-25].

Prevention Techniques: The resource isolation is well- known technique to prevent / limit the adverse effect of attacks. The hardware-based techniques uses Trusted Platform Module (TPM), Arm TrustZone, Trusted Execution Environ- ment (TEE), or Physical Memory Protection (PMP) to isolate the shared resources and limit the attacking surface. By end large, these are resource- heavy techniques and not suit- able for targeted devices [12- 14,26]. Recent lightweight implementation of VRASED (formally verified remote attestation) uses custom hardware module to detect different security property based attacks [27]. APEX extends VRASED to provide verified Proof Of eXecution (POX). They both resets the system to prevent the runtime attack. RARES advocates the development of use-case-specific prevention or recovery techniques to avoid adverse effects from abrupt system reset. The detailed system design is discussed in subsection III-B [11].

Recovery Techniques: The affected device can be re- covered by Over-The-Air (OTA) or manually code re-flash. Recent implementation of Healed [28] presents Merkle Hash Tree (MHT) based technique, which requires at least one node in the network to be untampered, and its firmware is used to re-flash the corrupted node. [29] keeps the software receiver-transmitter code in trusted ROM for connecting the affected device to a recovery server for re-flash. Recent implementations of CARE [30] presents lightweight secure- boot with onboard recovery technique for the system where manual or over-the-air code reflash are not possible. SRACARE extends CARE by adding secure communication and RA capabilities [26].

In summary, RA can only detect periodic runtime attacks and it suffers from CWE 367-Time-of-Check-Time-of-Use (TOCTOU) attacks [31]. Both CFA and DFA bloats the sys- tem memory by storing runtime execution flow logs, which makes them unsuitable for targeted low-end devices. The lightweight runtime attacks detection technique presented by APEX provides only one solution of resetting the system for preventing all different attacks. Furthermore, they do not cover the boot-time attacks detection or recovery techniques. In addition, RARES have presented lightweight control register based runtime attack detection, application specific prevention technique. The drawback of RARES is all the attack scenarios and its remedial flows needs to be known before the asic implementation.

Therefore, current work presents a FPGA based re- configurable recovery engine. Additionally, it presents the lightweight implementation of FPGA based recovery and automatic memory relocation/mapping for providing resiliency to future unknown attacks.

FRARE Overview

This section covers the details about the targeted platform, FRARE based system architecture, design, and operation.

Targeted Platform

The low-end microcontrollers (e.g., Texas Instrument’s MSP430 or Atmel AVR ATMega micro-controllers) are widely used in applications ranging from automotive ECU’s, indus- trial control systems, actuators, aviation, sensors, smart IoT, and Cyber- Physical System (CPS). These devices have very low hardware foot print with only a few KB of address and data memories. They do not have sophisticated hardware or OS support to detect and/ or prevent the malware attacks. Therefore, FRARE was designed targeting the OpenMSP430 platform as well-maintained open cores implementation of OpenMSP430 [2] was readily available. However, the pro- posed concept of custom control register (Ctrl register) based continuous runtime attacks classification and detection, use- case-specific prevention, and onboard recovery can be applied to other low-end devices such as Atmel AVR ATmega.

FRARE Design

Figure 2 Shows the high-level design architecture of FRARE.

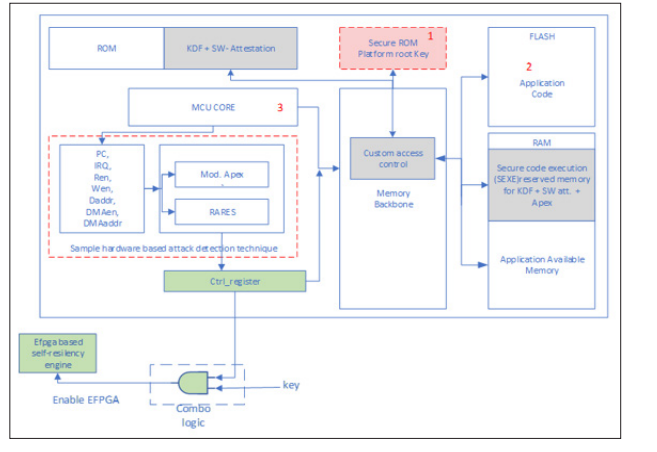

Figure 2: Top-level design of lightweight runtime attacks resilient FRARE system. Highlighted are the key components of the proposed system.

FRARE was designed on top of APEX and RARES. It leverages underlying architecture to provide verified proof-of- execution (POX). FRARE tapes out the seven control signals (Pc, Irq, Ren, Wen, Daddr, DMAen, DMAaddr) to its custom hardware module (Hw mod). It has carefully designed and modified the internal Finite State Machines (FSMs) of both VRASED and APEX for detecting different categories of attacks in only one machine clock cycle (mclk), as discussed in subsection §IV. It stores different attack bits in 16-bit control register Ctrl_register, which are discussed in detail in subsection §V. The Ctrl_register does not have high- level write Application Program Interface (API) access. The memory backbone acts as arbitration between the front end, DMA, and execution-unit interfaces for any system memory (e.g., program, data, and peripheral) accesses, and it is used by FRARE for attack prevention. FRARE includes separate secure recovery ROM and a small FPGA attached to the system to provide configurable mitigation and recovery.

FRARE Operation

Upon power-on the first-stage boot-loader (FSBL) code (from ROM) gets executed in reserved RAM memory and performs the secure-boot verification on flash image. It re- flashes the corrupted flash memory using recovery image upon integrity failure detection, else the system operates normally. FRARE satisfies all the security properties of APEX and uses the formally verified software HMC SHA256 code (SW-Att (HACL*) from ROM for secure-boot and RA function- ality. After that, the test application code (App Code) from flash gets executed in a specific region of (App. Avail. Mem.) RAM as shown in Figure 2 [32]. (Due to the page limitations here, interested readers are requested to refer for RA and POX operation). FRARE performs use-case- specific prevention and recovery operation as discussed in section ?? upon runtime attack detection [11].

Runtime Attacks Classification

Based on the seven control signals (Pc, Irq, Ren, Wen, Daddr, DMAen, DMAaddr) input to the custom hardware module and security properties of APEX, FRARE has classified memory modification attacks in three categories, namely: 1) CPU access violation, 2) DMA access violation, and 3)

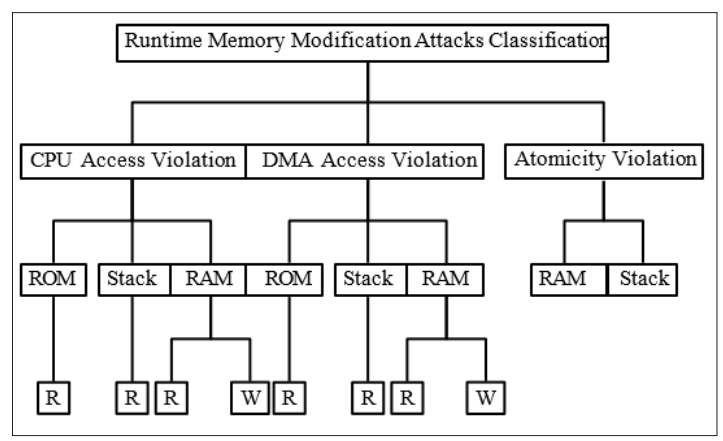

Figure 3: Runtime Memory Modification Attacks Classification Atomicity violation as shown in Figure 3.

CPU Access Violation: For the system shown in Figure 2, while executing the program code from RAM the CPU can only read the data from reserved stack and ROM (Sw-Att code). However, it cannot access the device’s secret key (K) from the key ROM. Similarly, The key (K) is only accessed by the CPU while it is executing the (Sw-Att) code inside the reserved stack. All other ROM and stack read accesses are detected as CPU access violation by the hardware FSM in Ctrl_register. Furthermore, any unauthorized RAM access (both read and write) violation during Sw-Att code execution are detected as CPU related RAM access violations. This sub-module focuses on (Pc, Ren, Wen, Daddr) control signals to detect any unauthorized memory read or write access request by the CPU. The corresponding detection bits are updated in Ctrl_register as discussed in subsection V.

DMA Access Violation: During the program code ex-ecution from RAM, direct memory access (DMA) read re- quest from the reserved stack and ROM (Sw-Att code) are allowed. However, DMA cannot access the device secret key (K), while executing the program code from RAM. Similarly, the DMA can access the key (K) only during Sw-Att code execution inside the reserved stack. All other ROM and stack related read accesses are identified as DMA access violation by the hardware FSMs and detected in Ctrl_register. Furthermore, unauthorized RAM access (both read and write) violations while running Sw-Att code are detected under DMA- related RAM access violation. This sub-module focuses on (Pc, Ren, Wen, DMAen, DMAaddr) control signals to detect any unauthorized memory read or write access request using DMA. The corresponding detection bits are updated in Ctrl_register as discussed in subsection V.

Atomicity Violation: This category detects any interrupt trigger violation during the code execution inside RAM and reserved stack (Sw-Att). The atomicity violation usually results in interrupt service routine (IRQ) code execution, intermittent data and secure key (K) leakage or loss. This sub-module detects mainly (Irq) IRQ during the code execution from the RAM and reserved stack (Sw-Att). The POC atomicity violation prevention technique is discussed in subsection ??.

Detection Technique

Based on attacks classification of section §IV, specific attack detection bits are updated in 16-bit Ctrl_register as depicted in Fig 4 Note that, at current stage FRARE has classified and detected total ten different types of memory modification attacks and stored them in bit positions D0-D9. The Ctrl_register bit (D0) and (D1) detects atomicity violations during RAM and stack code execution. The DMA related RAM write access violation is detected by flag bit (D2). The DMA read access violations for RAM, stack, and ROM are detected in bits (D3) (D4) and (D5), respectively. Similarly, CPU related RAM write access violation is detected by flag bit (D6). CPU read access violations for RAM,stack, and ROM are detected in bits (D7) (D8) and (D9), respectively.

Table I: State-of-The-Art (Qualitative) Comparison of Lightweight Attack Resilient Systems

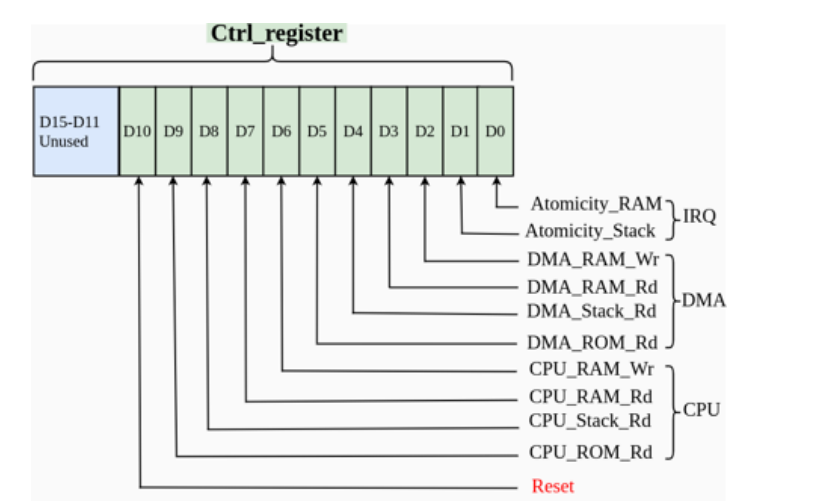

Figure 4: Depicts 16 bit Ctrl_register for each attacks detection by FRARE. Note that only 11-bits of the 16-bit Ctrl_register are used currently, and remaining D11-D15 bits are left for future development.

From this point the system developer can write use-case- specific runtime attack prevention or recovery technique.

Evaluation

This section performs qualitative and quantitative evaluation of FRARE based resilient system. The subsection §VI-A covers the resource utilization (and overheads) for quantitative analysis and subsection §VI-B performs the state-of-the-art comparison for qualitative analysis.

Resource Utilization - Quantitative Comparison

FRARE was implemented on top of APEX [11] and com- plete verilog Resistor Transistor Logic (RTL) was synthesized on Artix-7 Field Programmable Gate Array (FPGA) board using Xilinx Vivado 2018. As shown in Figure 2, the new control register (Ctrl register) was added into APEX’s METADATA with only read access from the software. Therefore, FRARE increases the reserved memory of APEX by two bytes to store 16-bit Ctrl_register And the hardware FPGA module was attached to the system with SPI interface. The FPGA was loaded with the recovery image externally. In the even of update neded for never attact this method can be scaled to provide resiliency to the attack via FPGA. Table II shows the hardware and memory resource utilization for a FRARE based system and compares it with different state- of-the-art implementations. The baseline Openmsp430 has the lowest hardware resources and requires no reserved memory. VRASED uses approximately 2 KB of reserved stack memory for computing the RA (using SW-Att code) and storing results. APEX adds nine bytes to store the verified proof of execution. RARES-A extends it further by 2 bytes for storing 16-bit Ctrl_register at runtime.

Table 2: Resource Utilization- Quantitative Comparison

FRARE based system and compares it with different state- of-the- art implementations. The baseline Openmsp430 has the lowest hardware resources and requires no reserved memory. VRASED uses approximately 2 KB of reserved stack memory for computing the RA (using SW-Att code) and storing results. APEX adds nine bytes to store the verified proof of execution. RARES-A extends it further by 2 bytes for storing 16-bit Ctrl_register at runtime.

This work has calculated hardware resource foot- print for two implementations, 1) RARES-A with 16-bit Ctrl_register and 2) RARES-B which includes the addi- tional onboard recovery ROM. RARES-A requires 2.3% more hardware registers and approximately 1.7% more LUT than APEX. RARES-B adds the recovery memory (as shown in Fig 2) and it requires 7.37% more hardware registers and approximately 10.3% more LUT than RARES-A (for 16KB ROM). FRARE maintains all twenty formal LTL specification verification of APEX.

State-of-the-Art Qualitative Comparison

FRARE was compared with state-of-the-art secure-boot, remote attestation, control flow attestation, and recovery-based resilience systems for qualitative analysis as shown in Table I. RAs provide periodic runtime software state verification. CFA and DFA provides continuous runtime attacks detection [20-22]. However, they are resource-heavy and bloats the system memory by logs storing. The lightweight implementa- tions of APEX [11], VRASED, and resets the systems to prevent the attacks. Only FRARE based system offers lightweight runtime attacks detection, use-case-specific pre- vention, secure-boot and onboard recovery techniques without an abrupt system reset [18,7].

Conclusion

The lightweight attack resilient system design requires runtime memory modification attacks detection, prevention, and/or recovery techniques. FRARE demonstrates the first implementation and efficacy of a novel FPGA based recovery and attack prevention engine along wirh lightweight control register (Ctrl register) based continuous runtime attacks detec- tion technique. This approach enables the system developers to design use-case-based prevention techniques.
